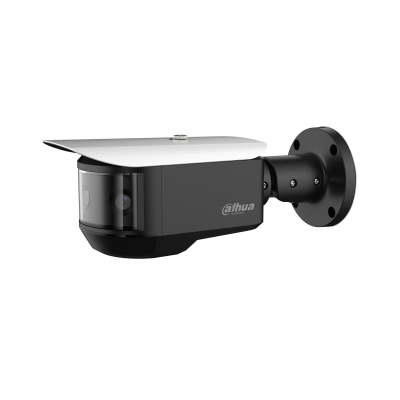

3X2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera

R3,773.00

  • Three 1/2.8” 2Megapixel progressive scan CMOS
  • 1 panoramic view &3 individual 2MP video output simultaneously
  • Max. 15fps@4K,25fps@4M
  • 120db true WDR,2D&3D NR
  • HDCVI starlight technology
  • Max.20m IR distance
  • IP67&IK10 ingress protection
  • Up to 500m transmission with RG59 coaxial cable

Out of stock

Compare
SKU: DH-HAC-PFW3601P-A180 Categories: , ,
Camera
Image SensorThree 1/2.8″ 2MP STARVISTM CMOS
Effective Pixels(Panorama)4K(3840×832)/4M(2560×554)
Scanning SystemProgressive
Electronic Shutter SpeedPAL:1/4s~1/100,000s

NTSC:1/3s~1/100,000s

Minimum Illumination0.005Lux/F1.8( Color), 30IRE,0Lux/F1.8(IR on)
S/N RatioMore than 65dB
IR Distance20m
IR On/Off ControlAuto (ICR)/Color/B/W
IR LEDs6
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length3.6mm
Max ApertureF1.8
Angle of ViewH: 180°
Focus ControlN/A
Close Focus Distance500mm

19.7”

DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI

Definition

Distance
Detect25px/m (8px/ft)50m(163ft)
Observe63px/m (19px/ft)20m(65ft)
Recognize125px/m (38px/ft)10m(33ft)
Identify250px/m (76px/ft)5m(16ft)
Pan / Tilt / Rotation
Pan/Tilt/RotationPan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video
Resolution4K (3840X2160)/4MP(2560×1440)
Frame RatePAL:3840×2160@12.5fps,2560×1440@25fps;

NTSC:3840×2160@15fps,2560×1440@25fps;

Video Output1-channel BNC HDCVI panoramic video output & 3-channels BNC 2MP HDCVI video output
Day/NightAuto (Electronic) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / WDR
WDR120dB
Gain ControlAGC
Noise Reduction2D/3D
White BalanceAuto / Manual
Smart IRAuto / Manual
Certifications
CertificationsCE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 sub partB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Alarm I/O2/1
Audio Interface1-channel audio in(JACK)
Test interface1-channel 2-pin CVBS video output
Upgrade Interface1-channel 4-pin USB input
Code switcher1 physical code switch(switch the preset video source)
Menu set1 Five-direction button
Eelectrical
Power Supply12V DC ±25%
Power Consumption22W
Environmental
Operating Conditions-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal ResistanceIP67&IK10
Construction
CasingAluminum
Dimensions286mm x 119mmx 106mm(11.26″×4.68″×4.19″)
Net Weight2.05kg (4.5lb)
Gross Weight2.43kg (5.36lb)
