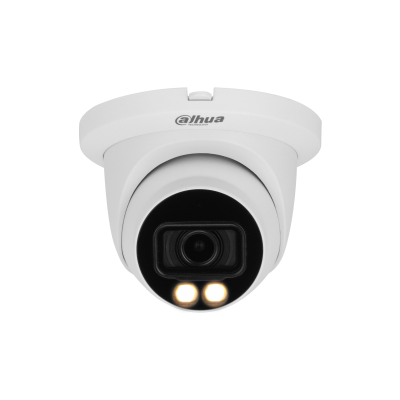

4MP Full-color Fixed-focal Warm LED Eyeball WizMind Network Camera

R3,388.00

  • 4MP 1/1.8″ CMOS image sensor, low illuminance, high image definition.
  • Outputs max. 4MP (2688 × 1520) @30 fps.
  • Built-in warm illuminator, and the max. illumination distance is 30 m.
  • ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various. bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Supports max. 256 G Micro SD card, Built-in Mic.
  • 12V DC/PoE power supply.
  • ePoE,IP67 protection.
  • SMD 3.0.
Add to Wishlist
Compare
SKU: DH-IPC-HDW5449TMP-SE-LED-0280B Categories: , ,
Camera
Image Sensor 1/1.8” CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.0005 Lux@F1.0 (Color, 30IRE)
S/N Ratio > 56 dB
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 2 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M16
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.0
Field of View 2.8 mm: Horizontal 107°;Vertical 60°;Diagonal 135°

3.6 mm: Horizontal 95°;Vertical 51°;Diagonal 116°
Iris Control Fixed
Close Focus Distance 2.8 mm: 1.6 m (5.2 ft)

3.6 mm: 2.6 m (8.5 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 58.2 m

(190.9 ft)

 23.3 m

(76.4 ft)

 11.6 m

(38.1 ft)

 5.8 m

(19.0 ft)
3.6 mm 70.3 m

(230.6 ft)

 28.1 m

(92.2 ft)

 14.1 m

(46.3 ft)

 7.0 m

(23.0 ft)
Smart Event
IVS Abandoned object; missing object
Heat Map Yes
Professional, intelligent
IVS (Perimeter Protection) Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.

Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.

Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Audio
Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+/H.264+
Video Frame Rate Main stream: 2688 × 1520 (1 fps–25/30 fps)
Sub stream: D1 (1 fps–25/30 fps)
Third stream: 1080p (1 fps–25/30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–20480 kbps

H.265: 3 kbps–20480 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 140 dB
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
Image Rotation 0°/90°/180°/270°
Mirror Yes
Privacy Masking 8 areas
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; people counting in area; stay alarm; people No. exception detection; queue management
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD card (Support max. 256 G); NAS
Browser IE: IE8 and later

Chrome

Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client iOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC (±30%)/PoE (802.3af)/ePoE
Power Consumption Basic: 2.4 W (12 VDC); 3 W (PoE)

Max. (H.265 + 3 streams + intelligence + LED): 6.5 W (12 VDC); 7.2 W (PoE)
Environment
Operating Temperature –40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage Temperature –40°C to +60°C (–40°F to +140°F)
Protection IP67
Structure
Casing Metal
Product Dimensions 104.4 mm × Φ121.9 mm (4.11″ × Φ4.80″)
Net Weight 500 g (1.1 lb)
Gross Weight 680 g (1.5 lb)
