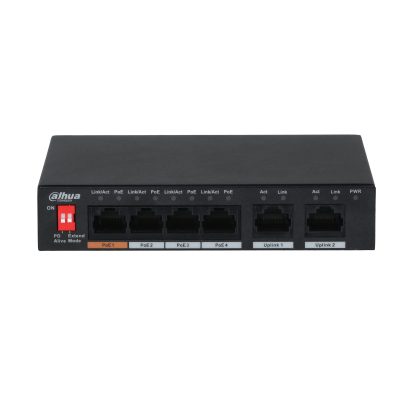

Name: 6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports
SKU: DH-PFS3006-4ET-60
Availability: InStock

6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports

R777.00

Layer two commercial switch
Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards
MDI/MDIX self-adaptation
RJ-45 port supports 10/100 Mbps self-adaptation, and confirms to 802.3at, and 802.3af power supply standards
Port 1 supports Hi-PoE 60W power supply
250 m PoE power supply
Wall mounting and mechanical anti-theft
53V DC power supply
Supports PoE watchdog

Compare

SKU: DH-PFS3006-4ET-60 Categories: Dahua, Networking

Hardware

Ethernet Port

Optical Port

Ethernet Port Rate

100 Mbps

Number of Business Card Slots

Port 1–4: 4 × RJ-45 10/100 M (PoE)
Port 5–6: 2 × RJ-45 10/100 M (uplink)

Power Supply

53V DC

Operating Temperature

–10°C to +55°C (+14°F to +131°F)

Operating Humidity

5%–95%

Storage Temperature

–20°C to +70°C (–4°F to +158°F)

Storage Humidity

5%–95%

Power Consumption

Idling: 1.5W
Full load: 60W

Performance

Switching Capacity

1.80 Gbps

Packet Forwarding Rate

0.89 Mpps

Packet Buffer Size

1 Mbit

MAC Table Size

Communication Standard

IEEE802.3, IEEE802.3u, IEEE802.3x

PoE

PoE Standard

IEEE802.3af/IEEE802.3at/Hi-PoE

PoE Power

60W

PoE Power Consumption Management

Yes

PoE Pin Assignment

PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Far Distance Mode

250 m @10 Mbps

General

ESD

Air discharge: 8kV
Contact discharge: 6kV

Thunderproof

Common mode: 2kV
Differential mode: 1kV

Net Weight

0.3 kg (0.66 lb)

Gross Weight

0.9 kg (1.98 lb)

Product Dimensions

130 mm × 85 mm × 26 mm (5.12″ × 3.35″ × 1.02″)

Packaging Dimensions

267 mm × 239 mm × 77 mm (10.51″ × 9.41″ × 3.03″)

Transmission Performance:
Switch power supply voltage 53V. CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Cable(m)	Load Capacity(W)	Bandwidth(Mbps)
IEEE802.3bt 90 W
100	71.3	100
150	62	10
200	51	10
250	40	10
Hi-PoE 60 W
100	53	100
150	50	10
200	47	10
250	37	10
IEEE802.3at 30 W
100	25.5	100
150	25.5	10
200	25.5	10
250	25.5	10
Note: Data from this table was collected by Dahua test lab and is for reference only . The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.
