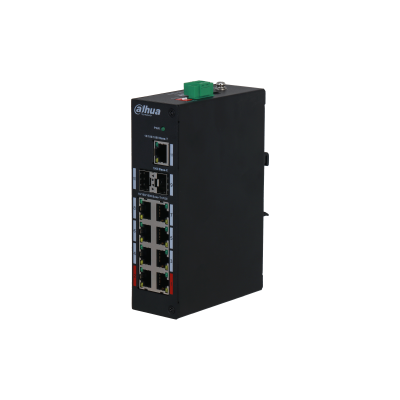

Name: 11-Port Unmanaged Desktop Switch with 8-Port PoE
SKU: DH-PFS3211-8GT-120
Availability: InStock

11-Port Unmanaged Desktop Switch with 8-Port PoE

R3,486.00

Compare

SKU: DH-PFS3211-8GT-120 Categories: Dahua, Networking

Hardware Feature

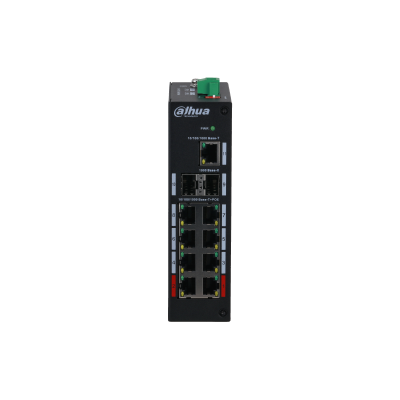

Ethernet Port

Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)

Port 9-10: 2 × SFP 1000 Mbps (uplink)

Port 11: 1 × RJ-45 10/100/1000 Mbps (uplink)

PoE Power Consumption

Port 1-2≤ 90W, Port 3-8 ≤30W, Total≤120W

Power Consumption

Idling: 5 W

Full load: 120 W

Standard

IEEE802.3/IEEE802.3u/IEEE802.3X/IEEE 802.3az/IEEE 802.3ab

PoE

PoE Protocol

IEEE 802.3af/ IEEE 802.3at/ Hi-PoE/IEEE 802.3bt

Power Supply Pin

1,2,4,5 (V+),3,6,7,8 (V-)

Long Distance

250 m long distance PoE transmission

PoE Power Management

Yes

PoE Watchdog

Yes

Performance

Switching Capacity

33 Gbps

Packet Forwarding Rate

16.37 Mpps

Packet Buffer Memory

1.75 Mbit

Flow Control

Enable by default

Working Temperature

–30 °C to +65 °C (-22°F to +149°F)

Application Humidity

5%~95% (RH)

General

Power Input

48 V – 57 V DC

Lighting Protection

Common mode 4 kV

Differential mode 2 kV

ESD Protection

Air discharge 8 kV

Contact discharge 6 kV

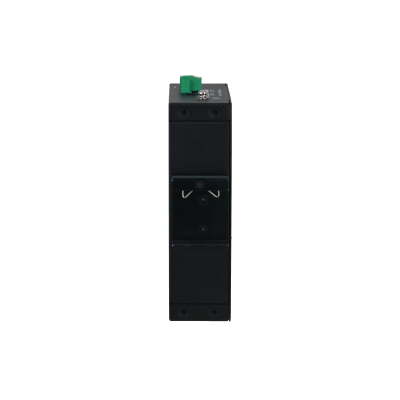

Wall-mount Installation

Yes

Anti-theft Lock Hole

Yes

Weight

0.67 kg (1.48 lb)

Dimension

150mm × 110mm × 42mm (5.91″ × 4.33″ × 1.65″)

Transmission Performance:
Switch power supply voltage 53V. CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Cable(m)	Load Capacity(W)	Bandwidth(Mbps)
IEEE802.3bt 90 W
100	71.3	1000
150	62	10
200	51	10
250	40	10
Hi-PoE 60 W
100	53	1000
150	50	10
200	47	10
250	37	10
IEEE802.3at 30 W
100	25.5	1000
150	25.5	10
200	25.5	10
250	25.5	10
Note: Data from this table was collected by Dahua test lab and is for reference only . The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.
