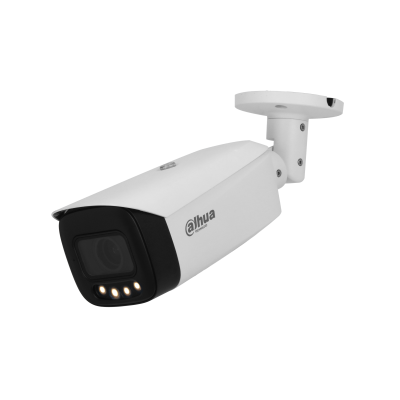

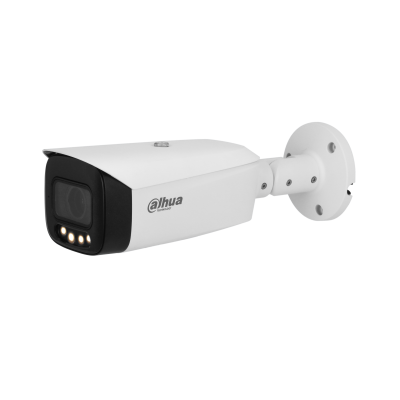

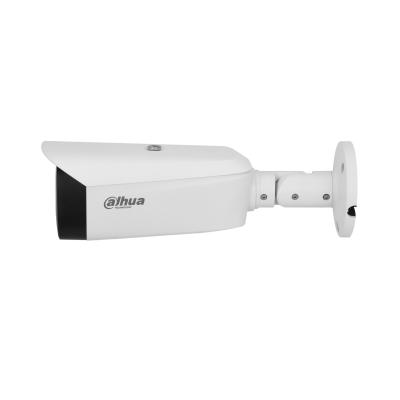

4MP Full-color Vari-focal Warm LED Bullet WizMind Network Camera

R6,475.00

  • 4MP 1/1.8″ CMOS image sensor, low illuminance, high image definition.
  • Outputs max. 4MP (2688 × 1520) @30 fps.
  • Built-in warm illuminator, and the max. illumination distance is 70 m.
  • ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265,flexible coding, ap plicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker, support two-way talk.
  • 12V DC/PoE power supply.
  • ePoE, IP67 protection.
  • SMD 3.0.
Compare
SKU: DH-IPC-HFW5449T1P-ZE-LED-2712 Categories: , ,
Camera
Image Sensor1/1.8” CMOS
Max. Resolution2688 (H) × 1520 (V)
ROM128 MB
RAM512 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.0005 Lux@F1.0
S/N Ratio> 56 dB
Illumination Distance70 m (229.66 ft)
Illuminator On/Off ControlAuto; Manual; Zoomprio
Illuminator Number4 (Warm light)
Pan/Tilt/Rotation RangePan: 0°–360°

Tilt: -20°–90°

Rotation:0°–360°

Lens
Lens TypeMotorized vari-focal
Mount Typeφ16
Focal Length2.7 mm–12 mm
Max. ApertureF1.0
Field of ViewHorizontal: 115°–48°

Vertical: 59°–27°

Diagonal: 142°–55°

Iris TypeAuto
Close Focus Distance1.75m(5.74 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
W60.4 m

(198.2 ft)

24.1 m

(79.1 ft)

12 m

(39.4 ft)

6 m

(19.7 ft)

T128.6 m

(421.9 ft)

51.4 m

(168.6 ft)

25.7 m

(84.3 ft)

12.8 m

(42.0 ft)

Smart event
IVSAbandoned object; missing object
Heat MapYes
Professional, intelligent
IVS (Perimeter Protection)Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Face DetectionFace detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People CountingSupport the counting of enter number, leave number and pass number, and displaying and outputting yearly/ monthly/weekly/daily reports Support the counting of number in area, and 4 rules configuration Count number of people or stay time and link alarm Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm

Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.

Intelligent SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart CodecSmart H.265+/Smart H.264+
Video Frame RateMain stream: 2688 × 1520 (1 fps–25/30 fps)

Sub stream: D1 (1 fps–25/30 fps)

Third stream: 1080p (1 fps–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability3 streams
Resolution4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 3 kbps–20480 kbps

H.265: 3 kbps–20480 kbps

Day/NightColor/B/W
BLCYes
HLCYes
WDR140 dB
DefogYes
White BalanceAuto/natural/street lamp/outdoor/manual/regional custom
Gain ControlAuto/Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Image Rotation0°/90°/180°/270°
MirrorYes
Privacy Masking8 areas
Audio
Built-in MICYes
Audio CompressionPCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; people counting in area; stay alarm; people No. exception detection; queue management
Network
NetworkRJ-45 (10/100 Base-T)
SDK and APIYes
Network ProtocolIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Cyber SecurityVideo encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
InteroperabilityONVIF( Profile S/Profile G/Profile T); CGI; Milestone; P2P
User/Host20 (Total bandwidth: 80 M)
StorageFTP; SFTP; Micro SD card (support max. 256 G); NAS
BrowserIE: IE8 and later

Chrome

Firefox

Management SoftwareSmart PSS; DSS; DMSS
Mobile ClientIOS; Android
Certification
CertificationsCE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port
Audio Input1 channel (RCA port)
Audio Output1 channel (RCA port)
Alarm Input1 channel in: 5mA 3V–5V DC
Alarm Output1 channel out: 300mA 12V DC
Power
Power Supply12V DC (±30%)/PoE (802.3af)/ePoE
Power ConsumptionBasic: 2.4 W (12 VDC); 3.4 W (PoE)

Max. (H.265 + 3 streams + intelligence + LED): 7.6 W (12 VDC); 9.3 W (PoE)

Environment
Operating Conditions–30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Storage Conditions–40°C to +60°C (–40°F to +140°F)
Protection GradeIP67
Structure
CasingMetal
Dimensions288.4 mm × 94.4 mm × 84.7 mm

(11.4″ × 3.7″ × 3.3″) (L × W × H)

Net Weight1.0 kg (2.2 lb)
Gross Weight1.23 kg (2.7 lb)
